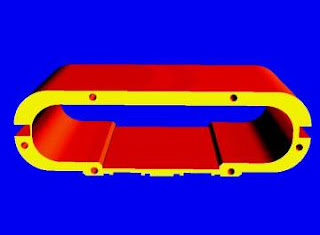

Chassis (cad001b)

The second concept using the same design as the first but with major refinement.

Now inclludes sensor slots, Threaded body adaptor ring for joining body sections to the base with threaded rod, Increased ribbing on the floor to reinforce the side cover screw holes and with the adaptor ring moulded seperately from the body, the main chassis section could be extrusion moulded on a smaller scale ( 1:2) in nylon for corrosive enviroments or mass productionfor childrens toys.
Crystal clear acrylic extrusions could also be cast for internal viewing of the robots components for school and hobbie applications.
